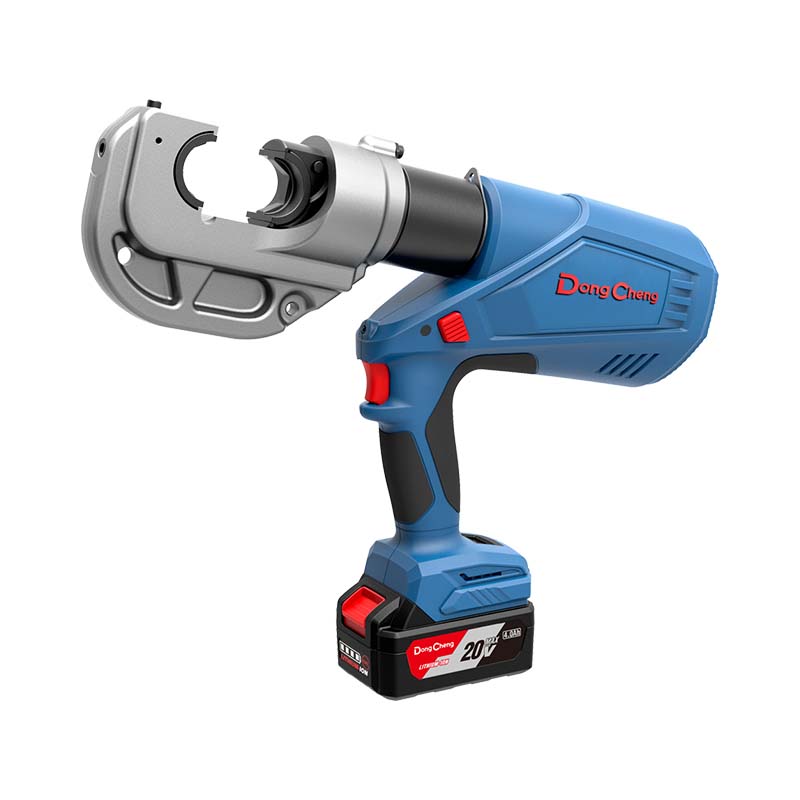

Dong Cheng Cordless Hydraulic Cable Crimping Tool (DCYH400EK)

Features

  • Micro hydraulic system
  • Micro bipolar hydraulic system
  • The crimping head, smoothly rotates by 350°
  • OLED display
  • LED light
Categories: , Tags: , , ,

Description

Dong Cheng Cordless Hydraulic Cable Crimping Tool (DCYH400EK)

Features

  • Micro hydraulic system
  • Micro bipolar hydraulic system
  • The crimping head, smoothly rotates by 350°
  • OLED display
  • LED light

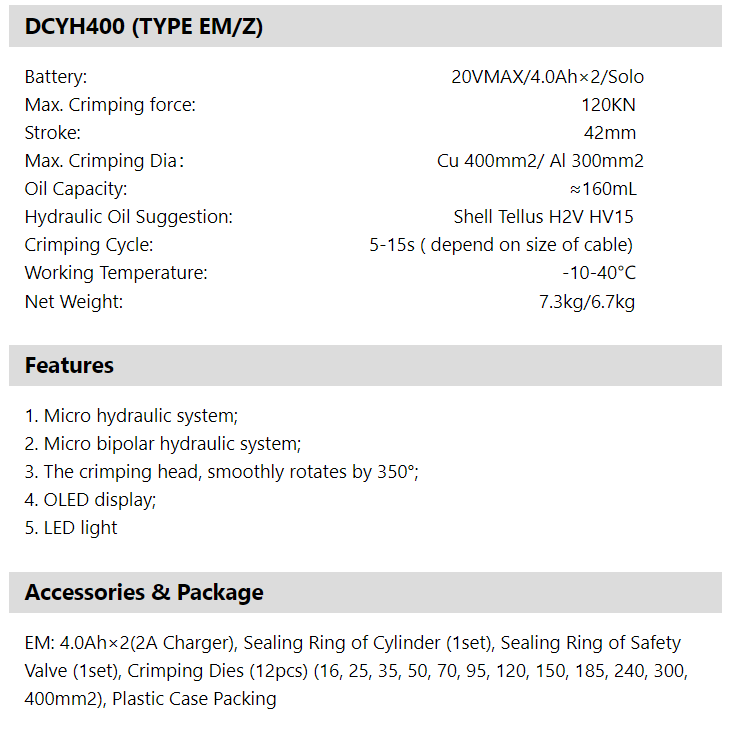

Specification

  1. Battery = 20V Max
  2. Max. Crimping Force = 120KN
  3. Stroke = 42mm
  4. Max. Crimping Dia. :
    Cu = 400mm²
    Al = 300mm²
  5. Oil Capacity ≈ 160mL
  6. Hydraulic Oil Suggestion = Shell Tellus H2V HV15
  7. Crimping Cycle = 5 – 15s (depend on size of cable)
  8. Working Temperature = -10 – 40°C
  9. Net Weight = 7.3kg (with battery) | 6.7kg (without battery)
  10. Standard Accessories = 4.0Ah Battery x 2, 4A Charger, Sealing Ring of Cylinder, Sealing Ring of Safety Valve, 12 x Crimping Dies (16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm²), Plastic Case Packing



*Products specifications subject to change without notice
