Description

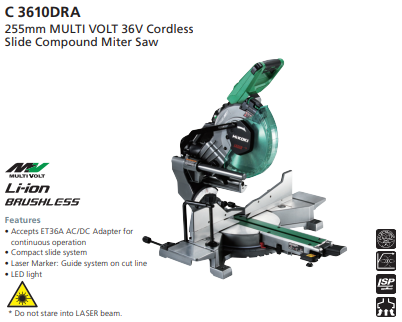

Hikoki 255mm MULTI VOLT 36V Cordless Slide Compound Miter Saw (C3610DRA)

Features

• Accepts ET36A AC/DC Adapter for continuous operation
• Compact slide system
• Laser Marker: Guide system on cut line
• LED light

*Do not stare into LASER beam.

Specification

1. Blade Dia. = 255mm
2. Capacity (H x W):
   0° (Right Angle): with anchor plate = 89 x 292mm
   without anchor plate = 64 x 318mm
   Miter Left/Right 45° : with anchor plate = 89 x 204mm
   without anchor plate = 64 x 222mm
   Bevel Left 45° : with anchor plate = 45 x 292mm
   without anchor plate = 41 x 318mm
   Bevel Right 45° : with anchor plate = 25 x 292mm
   without anchor plate = 19 x 318mm
   Miter Left/Right 45° + Bevel Left 45° : with anchor plate = 45 x 204mm
   without anchor plate = 41 x 222mm
   Miter Left/Right 45° + Bevel Right 45° : with anchor plate = 25 x 204mm
   without anchor plate = 19 x 222mm
3. Voltage = 36V
4. No Load Speed = 4,000/min
5. Miter Angle: Right = 0 – 60° | Left = 0 – 55°
6. Bevel Angle: Right = 0 – 48° | Left = 0 – 48°
7. Positive Miter Angle stop = 0,  Right and Left 15°, 22.5°, 31.6° and 45°
8. Dimensions = 778 x 792 x 686mm
9. Weight* = 20.6kg
10. Standard Accessories = 2 Batteries (BSL36B18), Charger (UC18YSL3), Blade, Dust Bag, Vise Ass’y, Wrench, Battery Covers, Support Rod Ass’y, Screws

*Depending on the attached battery. The heaviest weight is measured with BSL36B18 (sold separately)
