Description

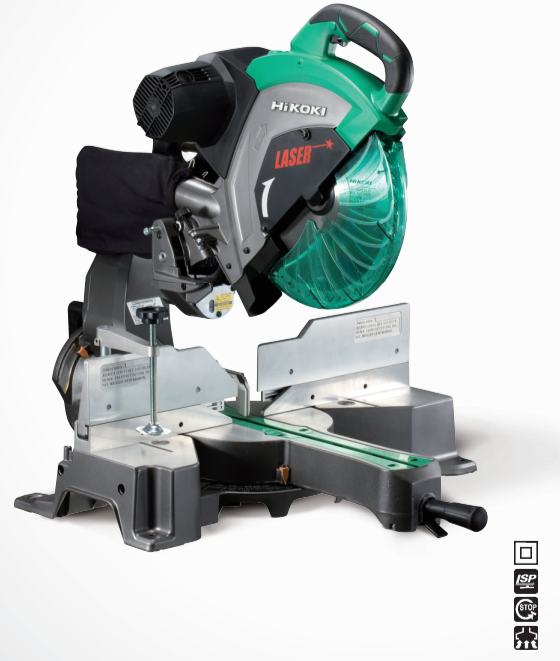

Hikoki 305mm Compound Miter Saw (C12RSH2)

Features

• Large cutting capacity within the depth of the main unit (890mm)
• 630mm wide base
• Laser marker for cutting accuracy
• 45° dual bevel
• Sliding sub-fence high enough to support large work pieces for stable cutting
• Positive stops for quick and easy miter angle setting

*Do not stare into LASER beam.

Specification

1. Capacity: Blade Dia. = 305mm
   Cutting Capacity (H x W):
   Cross Cut: 0° = 105 x 312mm
   Miter Left/Right: 45° = 105 x 220mm
   Bevel Left: 45° = 68 x 312mm
   Bevel Right: 45° = 43 x 312mm
   Bevel (Left) 45° + Miter (Left) 45° = 68 x 220mm
   Bevel (Left) 45° + Miter (Right) 31° = 68 x 265mm
   Bevel (Right) 45° + Miter (Right) 45° = 43 x 220mm
   Bevel (Right) 45° + Miter (Left) 31° = 43 x 265mm
2. Power Input = 1,520W
3. No Load Speed = 4,000/min
4. Miter Angle: Right = 0 – 57° | Left = 0 – 45°
5. Bevel Angle: Right = 0 – 47° | Left = 0 – 45°
6. Positive Miter Angle stop = 0, 15, 22.5, 31.6 and 45°
7. Dimensions = 655 x 890 x 724mm
8. Weight = 27kg (without the cord)
9. Standard Accessories = Blade, Dust Bag, Vise Ass’y, Box Wrench, Holder
