Description

Neovin High Flow Centrifugal Pump (CHFC-S11*/CHFC-S22*/CHFC-S33*)

Features

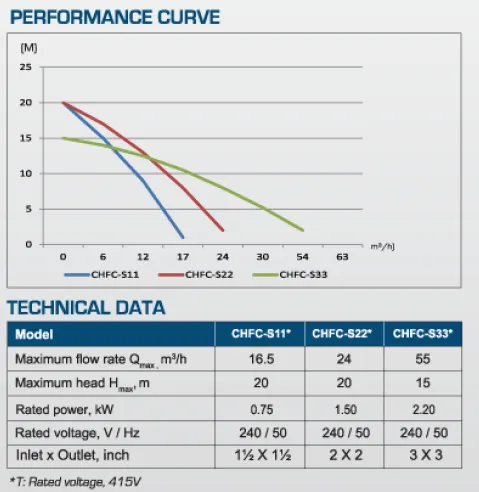

Specification

*CHFC-S11*

1. Maximum Flow Rate, Q = 16.5m³/h
2. Maximum Head = 20m
3. Rated Power = 0.75kW
4. Rated Voltage = 240V / 50Hz
5. Inlet x Outlet = 1½ x 1½ inch

*CHFC-S22*

1. Maximum Flow Rate, Q = 24m³/h
2. Maximum Head = 20m
3. Rated Power = 1.50kW
4. Rated Voltage = 240V / 50Hz
5. Inlet x Outlet = 2 x 2 inch

*CHFC-S33*

1. Maximum Flow Rate, Q = 55m³/h
2. Maximum Head = 15m
3. Rated Power = 2.20kW
4. Rated Voltage = 240V / 50Hz
5. Inlet x Outlet = 3 x 3 inch

*Products specifications subject to change without notice
