Description

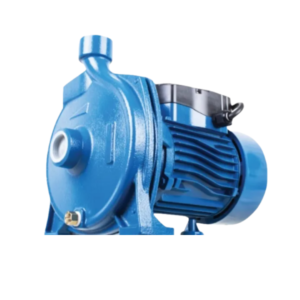

Neovin Stainless Steel Centrifugal Pump (CS-S720/CS-S1020/CS-S1420/CS-S1425)

Features

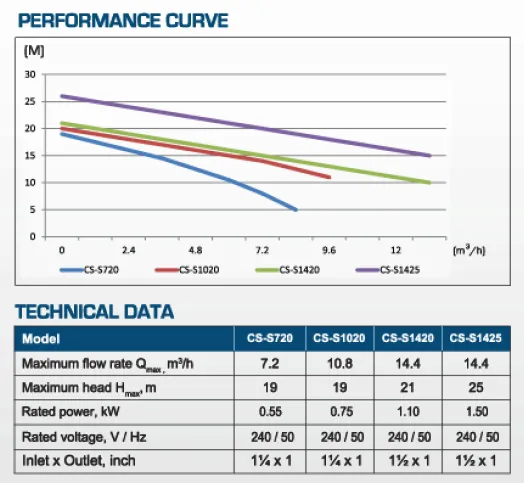

Specification

*CS-S720*

1. Maximum Flow Rate, Q = 7.2m³/h
2. Maximum Head = 19m
3. Rated Power = 0.55kW
4. Rated Voltage = 240V / 50Hz
5. Inlet x Outlet = 1¼ x 1 inch

*CS-S1020*

1. Maximum Flow Rate, Q = 10.8m³/h
2. Maximum Head = 19m
3. Rated Power = 0.75kW
4. Rated Voltage = 240V / 50Hz
5. Inlet x Outlet = 1¼ x 1 inch

*CS-S1420*

1. Maximum Flow Rate, Q = 14.4m³/h
2. Maximum Head = 21m
3. Rated Power = 1.10kW
4. Rated Voltage = 240V / 50Hz
5. Inlet x Outlet = 1½ x 1 inch

*CS-S1425*

1. Maximum Flow Rate, Q = 14.4m³/h
2. Maximum Head = 25m
3. Rated Power = 1.50kW
4. Rated Voltage = 240V / 50Hz
5. Inlet x Outlet = 1½ x 1 inch

*Products specifications subject to change without notice
