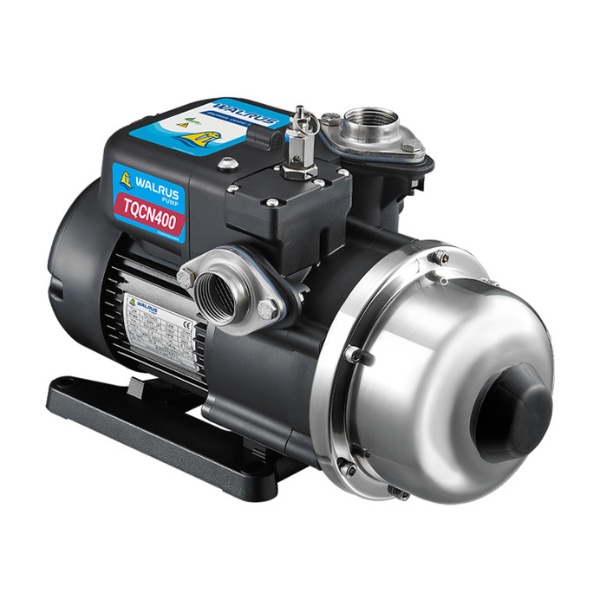

Walrus Hot Water Pump (TQCN400)
Features
- The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
- Compact design and quiet operation make the TQCN series suitable for many applications.
- The TQCN is constructed from the top quality corrosion resistant materials.
- The motor has built-in thermal overload to protect against high operating temperatures and over current.
- The TQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
- Relief value will automatically release the pressure when the TQCN full system pressure exceeds 5kg/cm²
Description
Walrus Hot Water Pump (TQCN400)
Features
- The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
- Compact design and quiet operation make the TQCN series suitable for many applications.
- The TQCN is constructed from the top quality corrosion resistant materials.
- The motor has built-in thermal overload to protect against high operating temperatures and over current.
- The TQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
- Relief value will automatically release the pressure when the TQCN full system pressure exceed 5kg/cm²
Specification
- Voltage = 370W (1PH)
- Inlet x Outlet = 1″ x 1″
- Motor = 1/2 HP
- Max. Head = 30m
- Capacity = 75L/min
